CC-P's Complete Sub-assembly Services.

CC-'s premium potting and encapsulating solutions are crucial for protecting printed circuit boards (PCBs) in a wide range of applications, including those in space, defense, and military.

It works by placing PCBs in a housing or silicone mold and is filled with a two-component resin. The connections, controls, sensors and other external signalers are not poured in during the process and cannot affect the functionality of the printed circuit board. Potting or encapsulation protects the sensitive, logic circuit of the printed circuit board from environmental influences and mechanical stress.

In addition to protecting against external influences, casting resin can also protect the printed circuit board from electrical breakdowns of up to 20 kV and the resin can also conduct and dissipate the heat produced by some specific components into the environment.


This also serves to protecting your IP (Intelectual property) because counterfeiting your printed circuit board by competitors is also virtually impossible.

The service life of a printed circuit board is extended by potting or encapsulation, counterfeiting is virtually impossible and operational reliability is significantly improved.

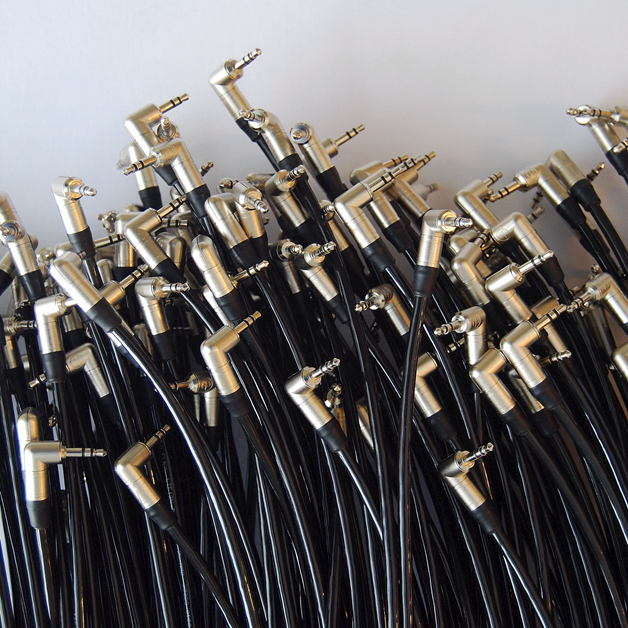

  • Control Cables & Wiring Harnesses

    With our flexibly deployable machines, we are able to efficiently and quickly make the most diverse control cables and wiring harnesses to customer specifications.

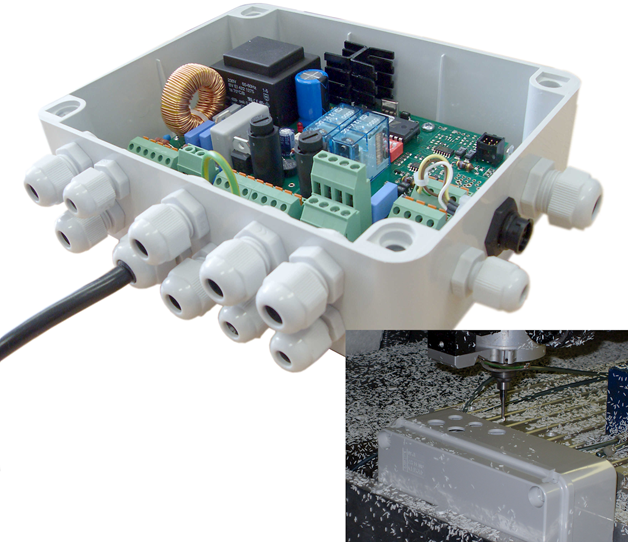

  • Box building

    Box building can be a simple enclosure containing a PCB, but also a custom-made enclosure with sub-assemblies. We offer a high-quality box building service, which offers complete product solutions.

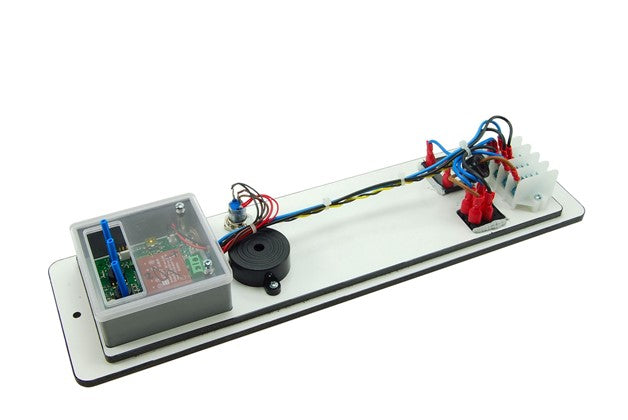

  • Product Assembly

    Thanks to our extensive experience, we can advise you on product modifications that make production more efficient and thus cost-effective. We also have a lot of experience with harsh environment protection and we are happy to advise you in this area

1 3
Contact us

Markets & Industries We Serve

  • Aircraft Industry

  • LED, PCB & Eletronics

  • Green Energy

  • Maritime Industry

  • Auto Industry

  • Other Industries

Frequently Asked Questions

What is conformal coating?

A conformal coating is an electrically insulating coating that is selectively applied to protect an electronic control against moist air, vapors or other dirt.

Why do I need to protect an electronic control?

Protecting an electronic control will increase reliability and reduce failures in the field.

Is there one coating material that is suitable for all applications?

No, there are different coating materials for different applications. The choice depends on the requirements of the coating. Some points of interest are: temperature resistance, UV resistance, market segment standards, reworkable, etc.

What coating materials are available?

There are coating materials based on acrylic, synthetic rubber, polyurethane, silicone and UV-curing. The choice depends on the application that needs to be protected.

What methods of application are there?

A conformal coating can be applied by spraying, mechanical selective coating, dip coating and lacquer pouring.

Which coating is best to apply to our controls?

The coating to use depends on where the control is used. Based on a situation sketch, we can indicate which coating can best be applied.

What type of coating material can CC & P apply?

We can apply almost any desired material upon request

Why CC-P?

At CC-P we are focused on meeting the highest quality standards and ensuring customer satisfaction, we prioritize the delivery of quality products in a timely manner and keeping open communication with both customers and suppliers.

We assist in choosing coatings, potting, or ruggedizing materials, offer prototypes, and set up manufacturing processes to ensure consistent quality and finishes, by investing in our materials, methods, research and developemnt.
